  • Central Ag Equipment

Convey-All conveyors

Updated: Nov 21, 2022


Central Ag Equipment are proud to announce that we are now a stocking dealer for Grain-Logic who import a range of high quality and class-leading Canadian agricultural products.


We are stocking the Convey-All 16”x 58 foot trans loading conveyor. With a 16” or 22” wide rubber crescent top belt, these conveyors have a high capacity ranging up to 200 T/hr. The need for belts or pulleys is eliminated through a completely self-contained and fully hydraulic drive. The product’s low profile allows the collapsible hopper to easily slip under any silo.


The unit also comes standard with a fully hydraulic mover kit and over axle engine allowing for safe refilling of oil and fuel.

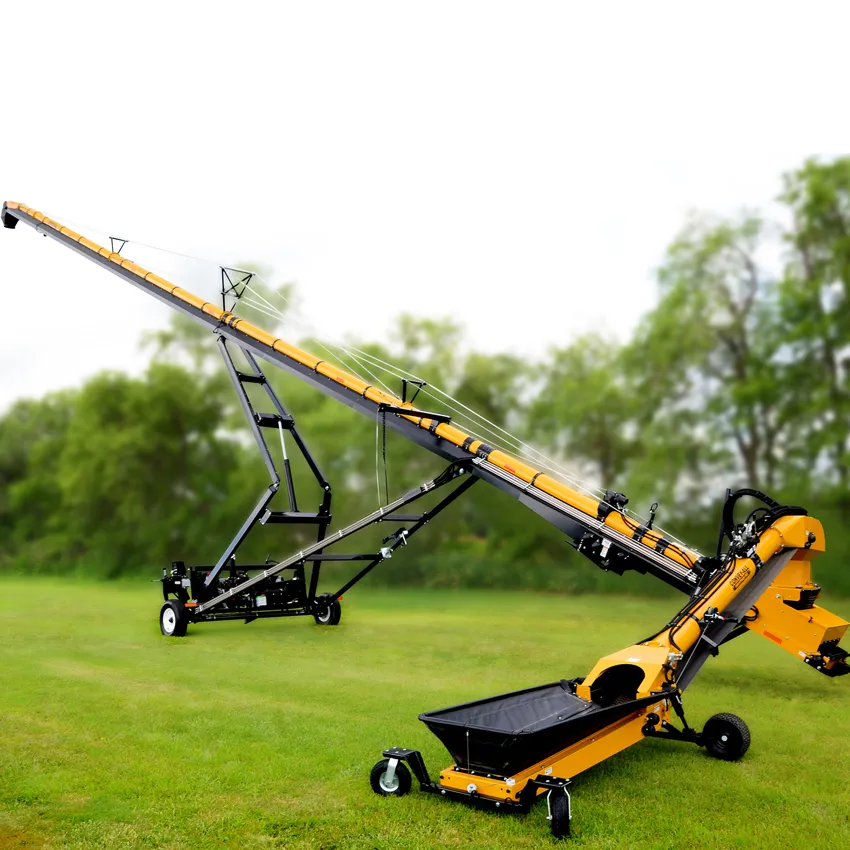

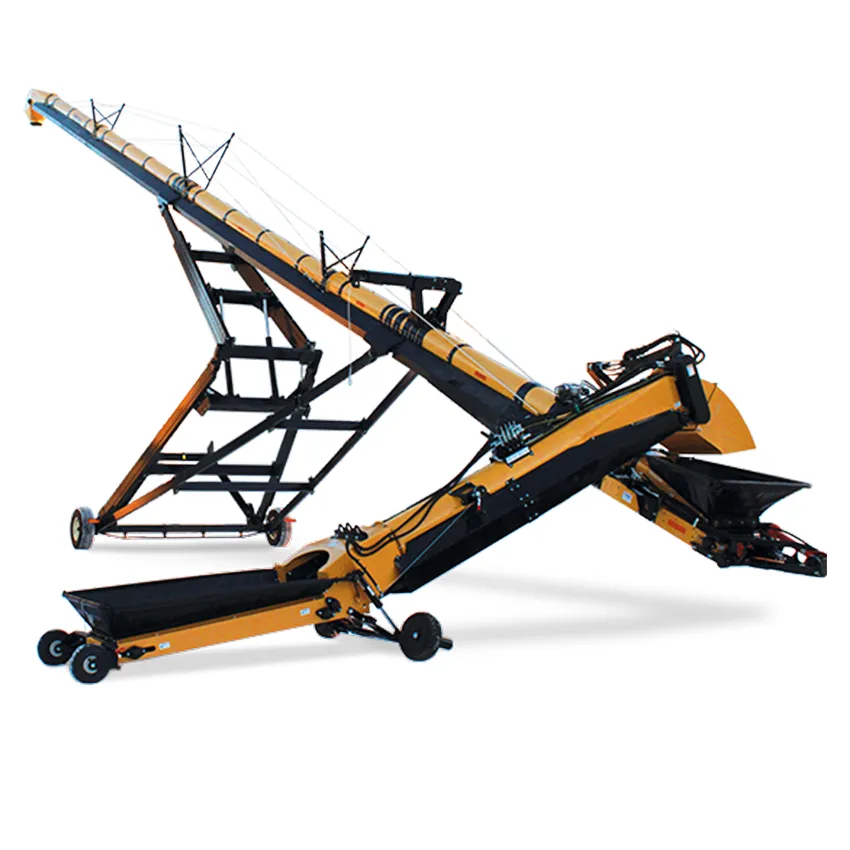

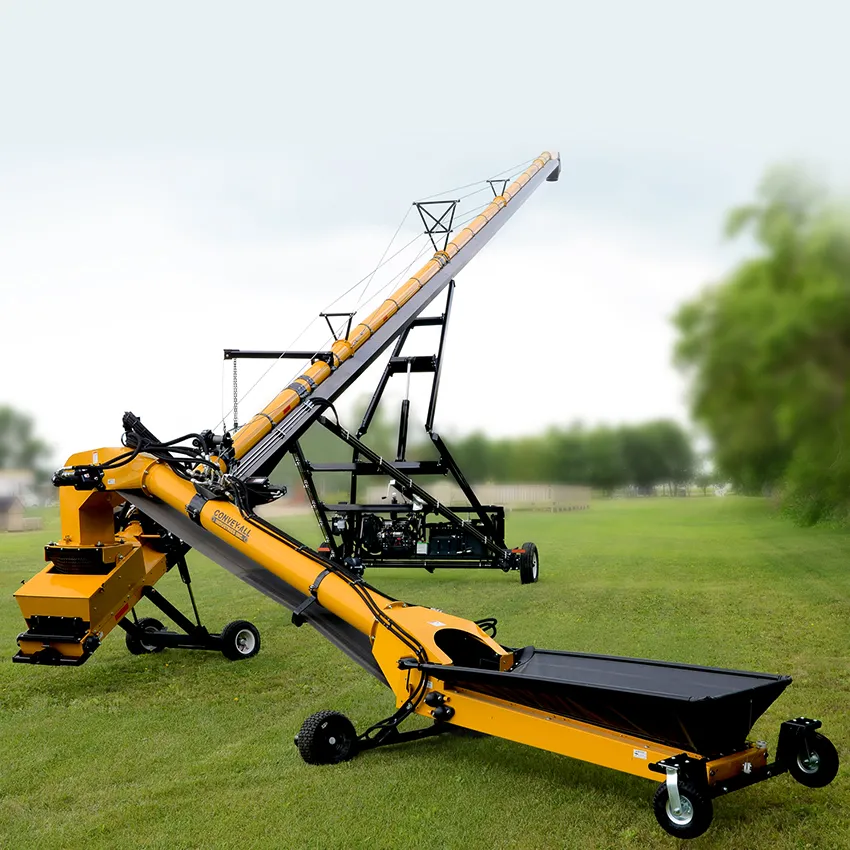

Self-propelled transloading conveyors

If you need a dependable, long-lasting grain and fertiliser conveyor with industry-best warranty and over 30 years of innovation experience, you need a Convey-All Transloading Conveyor! With a 16” or 22” wide rubber crescent top belt, these conveyors have a high capacity ranging from 176 – 327 Tonnes / Hour. The need for belts or pulleys is eliminated through a completely self-contained and fully hydraulic drive and the products low profile allows the collapsible hopper to easily slip under any silo.


FEATURES

1600 TL SERIES

  • 35 HP twin petrol engine

  • “A” frame undercarriage with hydraulic cylinder lift

  • 45 litre fuel tank

  • Tandem hydraulic system

  • Winch down collapsible hopper

  • Steel hydraulic oil tank 100l

  • All operations at ground level

  • Up to 200 tonnes per hour

2200 TL SERIES

  • 22” – 2 ply rubber crescent top belt

  • 50 HP Kubota diesel engine

  • 14” diameter x 12 gauge tubes

  • Hydraulic belt drive with 4000 series motor

  • Positive pinch belt drive

  • Hydraulic driven mover with 180 deg steering

  • 190 litre hydraulic oil tank

  • Up to 300 tonnes per hour



SPECIFICATIONS

Model

Under-Carriage

Tube Diameter

Belt Width

Axle Width

Transport Height

Transport Length

Petrol HP

Diesel HP

1635TL

A-Frame

10"

16"

8'4"

2.92m

13.33m

35

Enquire

1650TL

A-Frame

10"

16"

8'4"

3.47m

16.33m

35

Enquire

1658TL

A-Frame

10"

16"

8'4"

3.91m

18.49m

35

Enquire

2245TL

Scissor-Lift

14"

22"

8'4"

4.11m

15.69m

X

50

22525TL

Scissor-Lift

14"

22"

8'4"

4.67m

17.93m

X

50

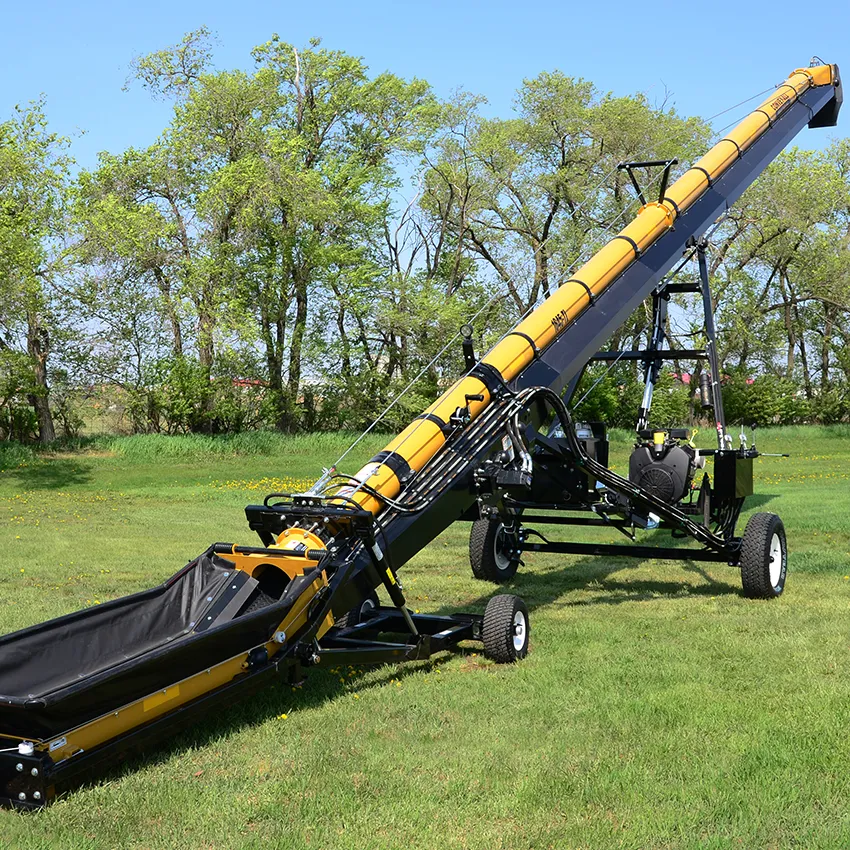

High capacity 1600 tube conveyor

The Convey-All 1600 series conveyor is a dependable, long-lasting grain and fertiliser conveyor built with over 30 years of innovation experience and supported by industry leading warranty and support. This 1600 series of high capacity tube conveyors are equipped with a 10” tube and a 16” belt which allows increased capacity (up to 200 tonnes per hour) and a fuller tube. This Conveyor will move product fast and efficiently and is available in a multitude of lengths to match your on farm or in field requirements.


FEATURES

  • Up to 200 tonnes per hour

  • Positive, non-slip self-tensioning drive system

  • Heavy duty under-carriage

  • Adjustable discharge spout

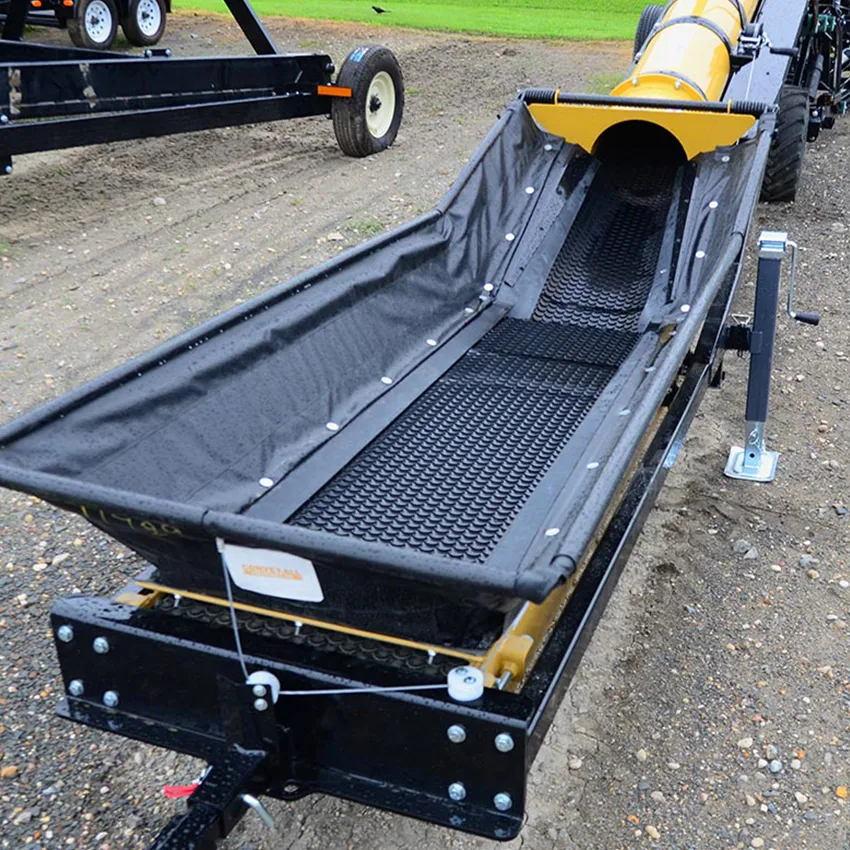

  • Collapsible hopper

  • A-frame or scissor lift under-carriage

  • Full length wind guards

  • Lift jack

  • Spring tension standard S-Drive box

SPECIFICATIONS

Model

Under-Carriage

Tube Diameter

Belt Width

Axle Width

Transport Height

Transport Length

Elec HP

Petrol HP

1635

A-Frame

10"

16"

8'

3.32m

12.4m

7.5

27

1645

A-Frame

10"

16"

9'1"

3.56m

15.49m

10

27

1645SP

A-Frame

10"

16"

9'1"

3.56m

15.49m

X

38EFI

1665

Scissor-Lift

10"

16"

11'4"

3.6m

19.81m

20

X

1665SP

Scissor-Lift

10"

16"

11'4"

3.6m

19.81m

X

38EFI

1670

Scissor-Lift

10"

16"

11'4"

3.6m

23.14m

20

X

1675

Scissor-Lift

10"

16"

11'4"

6.53m

24.66m

20

X

1675SP2

Scissor-Lift

10"

16"

11'4"

6.53m

24.66m

X

38EFI

1685

Scissor-Lift

10"

16"

12'6"

3.53m

27.76m

20

X

1685SP2

Scissor-Lift

10"

16"

12'6"

3.53m

27.76m

X

38EFI

Model

Under-Carriage

Tube Diameter

Belt width

Axle Width

Transport Height

Transport Length

Elec HP

Petrol HP

1690

Scissor Lift

10"

16"

12'6"

3.71m

29.26M

20

X

16100

Scissor Lift

10"

16"

13'6"

4.45m

32.03m

20

X

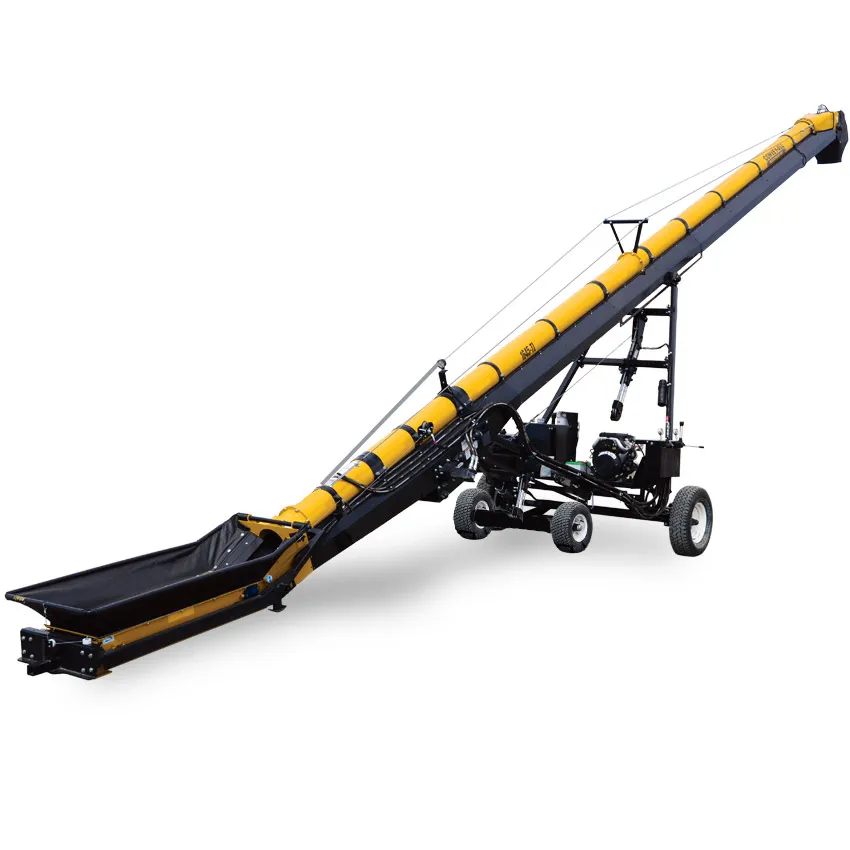

High capacity 2200 tube conveyor


The Convey-All 2200 series conveyor is a dependable, long-lasting grain and fertiliser conveyor built with over 30 years of innovation experience and supported by industry leading warranty and support.

This 2200 Series of high capacity tube conveyors is equipped with a 14” tube and a 22” belt allowing maximum capacity (up to 330 tonnes per hour) within the Convey-All fleet.


FEATURES

  • Up to 330 tonnes per hour

  • Positive, non-slip self-tensioning drive system

  • Heavy-duty under-carriage

  • Adjustable discharge spout

  • Collapsible hopper

  • A-Frame or scissor lift under-carriage

  • Full length wind guards

  • Lift jack

  • Spring tension standard S-Drive box

SPECIFICATIONS

MODEL

Under-Carriage

Tube Diameter

Belt Width

Axle Width

Transport Height

Transport Length

Elec HP

Petrol HP

2235

A-Frame

14"

22"

8'4"

3.25m

11.79m

15

35

2245

A-Frame

14"

22"

9'1"

3.43m

14.86m

15

35

2265

Scissor Lift

14"

22"

9'1"

3.48m

21.03m

25

X

2270

Scissor Lift

14"

22"

9'1"

3.53m

22.56m

30

X

2285

Scissor Lift

14"

22"

13'6"

3.76m

14"

22"

X

2290

Scissor Lift

14"

22"

13'6"

3.99m

14"

22"

X

22100

Scissor Lift

14"

22"

13'6"

4.27m

31.67m

40

X

22110

Scissor Lift

14"

22"

13'6"

4.42m

34.72m

50

X

22120

Scissor Lift

14"

22"

13'11

4.56m

37.8m

50

X

For more information:


Scott Allen 0475 943 338 Email: sallen@centralagequipment.com.au

Vaughan Habner 0427 873 075 Email: vaughan@cumminsag.com.au

Mark Dickinson 0427 641 435 Email: mark@cumminsag.com.au

Jarrad Manners 0438 994 612 Email: jarrad@cumminsag.com.au
